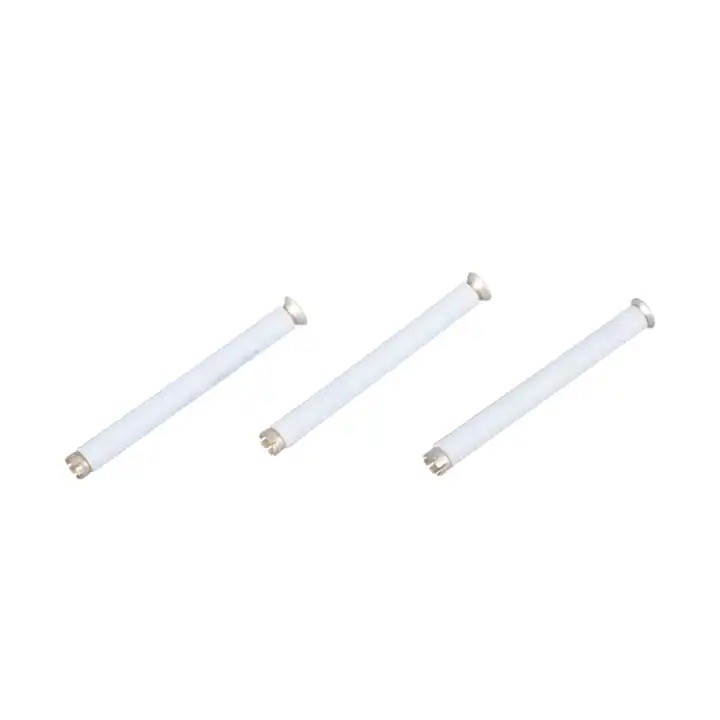

Bay-O-Net Fuse PRNT-10/15-40A 9mm*99mm
1.Product description
PRNT4- 8.3 PRNT4- 9.9,PRNT4- 15.5, PRNT4- 17.2,PRNT4-23, PRNT4-38series of high-voltage fuses for overload protection of oil-immersedtra nsformers are suitable for use in power systems with AC rated frequency of 50Hz and rated voltage of 8.3kV, 9.9kV, 15.5kV,17.2kV, 23kV a nd 38kV respectively. As the overload protection protection element for power transformer and other power equipmen t, thefuse is installed in the transformer oil of American type box transformer or other box transformer, and can be co- boxed withtransformer and load switch. The oil-immersed transformer overload protection high-voltage fuse can not b e used alone, canbe connected in series with the transformer backup protection high-voltage current-limiting fuse t o form a full range ofhigh-voltage current-limiting fuse. When the overload current exceeds the specified value for a certain period of time, thecircuit is opened by the overload high-voltage fuse. When the short-circuit current passes through the fuse, the short-circuitcurrent is opened by the backup high-voltage current-limiting fuse. The product c an be widely used in the distributionprotection of wind power generation, solar power generation, tide stream power generation and other equipment.This product can produce trace pollution to transformer when breaking overload current, the time-current characteristic curve is stable, and the breaking capacity is 2.5kA.
2.Technical Specifications
| Product model | Rated current of fuse (A) | Use environment |
Rated breaking current(kA) |
|
PRNT4- 8.3 PRNT4- 9.9 PRNT4- 15.5 PRNT4- 17.2 PRNT4-23 PRNT4-38 |
5 ,6.3 ,10 ,16 ,25 ,40, 50 ,63 ,100 ,140 |
Inside transformer oil | 2.5 |
| Product model | Rated current of fuse (A) | A | B |
|
PRNT4- 8.3 PRNT4- 9.9 PRNT4- 15.5
|
5 ,6.3 ,10 ,16 ,25 ,40,50 ,63 ,100 ,140 | 99 | Φ9 |
|
PRNT4- 17.2 PRNT4-23 PRNT4-38 |
200 |
3.Environmental Conditions
1. Ambient temperature: not higher than +40 ºC, not less than -15 ºC (at -30 ºC to allow storage and transportation).
2. Altitude: not exceed 1000m.
3. Earthquake intensity: not more than 8 degree.
4. Wind pressure:≤700pa
5. No fire, explosion hazard, serious filthy, chemical corrosion, as well as places of intense vibration
4.Service:
1.HaoSheng Co., Ltd is founded in 2002, 10000m2 plant, specialized in manufacturing high & low voltage fuse, always focusing on the business at collection of research, design, OEM, ODM and trade in CN.
2. Our factory has Automantic production line.
3. We have quality management system and relevant certificates.
4. 24 hours oversea service online.
5.Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Our products have been exported to Argentina, Egypt, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
6.FAQ
1.Are you manufacture?
We are a professional factory with more than 20 years of experience,Our projects supplied to Airprot/Subway/Railway/power station.
2.What is your technical advantages?
Our engineers worked in the power distribution industry field for 20~30 years.In particular, in non-standard customization of electric field, High altitude, non-standard voltage frequency field.
3.What is your price advantages?
we have 5 branch factorier for electric components,all raw materials are one stop shopping,so we can save the value for you!
4.How about your quality advantage?
We are 100% guarantee the quality for 3 years.
5.How about your delivery time?
The delivery time with 7-10 working days after get your deposit.( the Qty depends on 10-20 sets),Our factory is located in
Xi'an , Shannxi . In terms of quality and strength, we are both ahead of the market .
6.We can accept payment way:
TT
